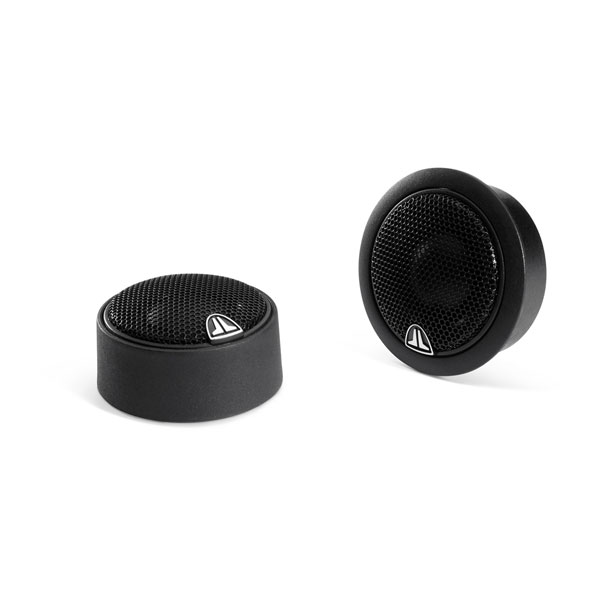

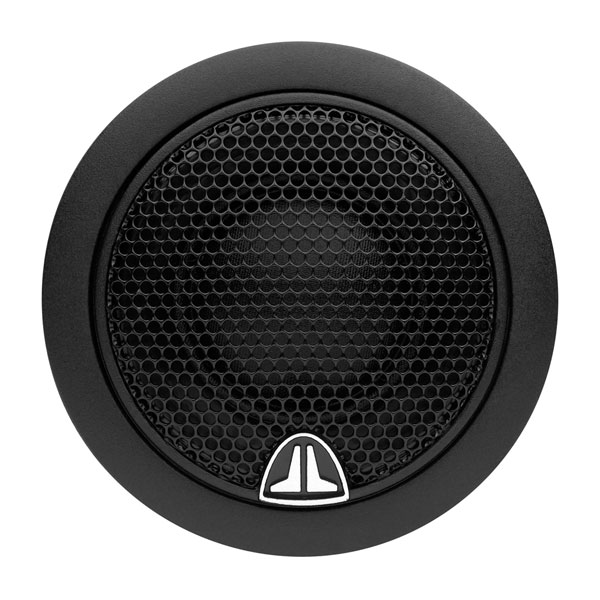

JL Audio C2 Car Component Tweeter

0.75" Component Tweeter (C2-075ct)

Part Number 010-03355-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

The JL Audio C2 component tweeters deliver a clean and powerful sonic profile. Equipped with 0.75-inch silk dome diaphragms, the C2 component tweeters offer robust and extended response both on and off-axis. Included flush-mounting and surface-mounting fixtures cater to various installation preferences.

General
Sizes	0.75"
Continuous power handling (RMS)	60 W
Sensitivity (SPL @ 1 W/1 m)	91.0 dB
Frequency response (+/- 3 dB)	4 kHz-22 KHz
Nominal impedance	8 Ω
Recommended amplifier power (RMS)	15-100 W/Channel
Tweeter type	Silk Dome
Tweeter size	0.75" (19 mm)
Warranty	1 year
Connections
Speaker connections	Spade connectors
Tweeter Specifications
Flush mount fixture diameter	1.87" (48 mm)
Surface mount fixture diameter	1.69" (43 mm)
Flush mount mounting hole diameter	1.625" (41 mm)
Flush mount mounting depth	0.76" (19 mm)
Flush mount tweeter frontal protrusion	0.29" (7 mm)
Surface mount tweeter frontal protrusion	0.92" (23 mm)

Two tweeters
Two crossovers
Two flush mount housings
Two surface mount housings
Two metal spring clips (for flush mounting)
Four flat head screws
Two 25 mm stud bolts
Two 10 mm stud bolts
Two M5 nuts
