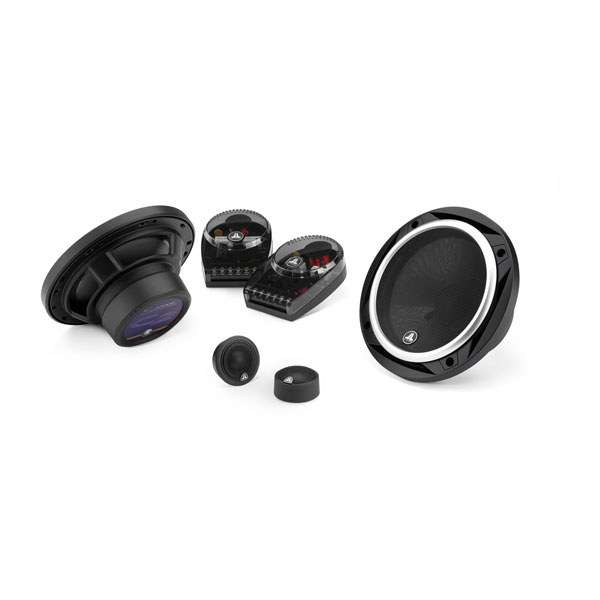

JL Audio C2 Car Speaker System

6.5" Two-way Component System (C2-650)

Part Number 010-03361-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

REFINED PERFORMANCE FOR REAL-WORLD VEHICLES

C2 speaker systems combine real silk dome tweeter performance, smooth midrange and powerful midbass capabilities in a wide range of component speaker sizes.

COMPONENT SPEAKERS

MULTIPLE SIZES AND FLEXIBLE MOUNTING-HOLE PATTERNS FOR EASY INSTALLATION

DMA-OPTIMIZED WOOFERS FOR BETTER BASS RESPONSE

PURE SILK DOME TWEETERS FOR SMOOTHER, CLEANER SOUND

TRUE TWO-WAY OUTBOARD CROSSOVERS

1-YEAR WARRANTY

WHAT YOU'LL LOVE

DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality.

SMOOTH WOOFER ROLL-OFF

Woofers have no harshness in the upper midrange, and they transition smoothly to the tweeters. Well-dampened cones and suspensions minimize ringing.

SILK DOME TWEETERS

Tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended off-axis response. Flush- or surface-mounting options are included.

TRUE TWO-WAY CROSSOVER

C2 crossover networks are compact and built with premium component parts, including segmented air-core inductors. Three levels of tweeter attenuation are provided as well as a tweeter protector.

EASY INSTALLATION

Speakers feature multiple hole patterns and breakaway mounting tabs (depending on model) as well as shallow woofer mounting depths and compact component tweeters with flush- or surface-mounting hardware.

STYLISH GRILLE DESIGN

Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

General
Sizes	5.25"/6"/6.5"
Continuous power handling (RMS)	60 W
Sensitivity (SPL @ 1 W/1 m)	5.25": 89.0 dB 6": 90.5 dB 6.5": 91.0 dB
Frequency response (+/- 3 dB)	5.25": 63 Hz-22 KHz 6"/6.5": 59 Hz-22 KHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	15 - 100 W/Channel
Voice coil diameter	1" (25 mm)
Cone material	Mineral-filled polypropylene
Tweeter type	Silk Dome
Tweeter size	0.75" (19 mm)
Grille(s) included	yes
Warranty	1 year
Networking & Connectivity
Speaker connections	Spade connectors
Mounting Dimensions
Frame outer diameter	5.25": 5.20" (132 mm) 6": 6.21" (158 mm) 6.5": 6.5" (165 mm)
Mounting depth clearance	5.25": 0.72" (18 mm) 6": 0.91" (23 mm) 6.5": 0.85" (22 mm)
Frontal grille protrusion	5.25": 0.72" (18 mm) 6": 0.91" (23 mm) 6.5": 0.85" (22 mm)
Mounting hole	5.25": 4.56" (116 mm) 6": 5" (127 mm) 6.5": 5.56" (141 mm)
Grille tray outer diameter	5.25": 6.01" (153 mm) 6": 6.51" (163 mm) 6.5": 6.84" (174 mm)
Motor outer diameter	5.25": 2.76" (70 mm) 6"/6.5": 3.15" (80 mm)
Tweeter Specifications
Flush mount fixture diameter	1.87" (48 mm)
Surface mount fixture diameter	1.69" (43 mm)
Flush mount mounting hole diameter	1.625" (41 mm)
Flush mount mounting depth	0.76" (19 mm)
Flush mount tweeter frontal protrusion	0.29" (7 mm)
Surface mount tweeter frontal protrusion	0.92" (23 mm)
Crossover Specifications
Width	3.36" (85 mm)
Height	1.44" (37 mm)
Depth	4.72" (120 mm)

Two woofers
Two tweeters
Two crossovers
Eight Speed clips
Two 0.205" female crimpable connectors
Two 0.110" female crimpable connectors
Two 0.205" male crimpable connectors
Two 0.110" male crimpable connectors
Four 7/8" flat head screws
Twelve 1-1/8" pan head screws
Two flush mount tweeter housings
Two surface mount tweeter housings
Two metal spring clips (for flush mounting)
Two M4x30 mm Pan-head machine screws
Twelve crimpable spade connectors
Two grilles with JL Audio logo badges
