JL Audio C3 Car Speakers

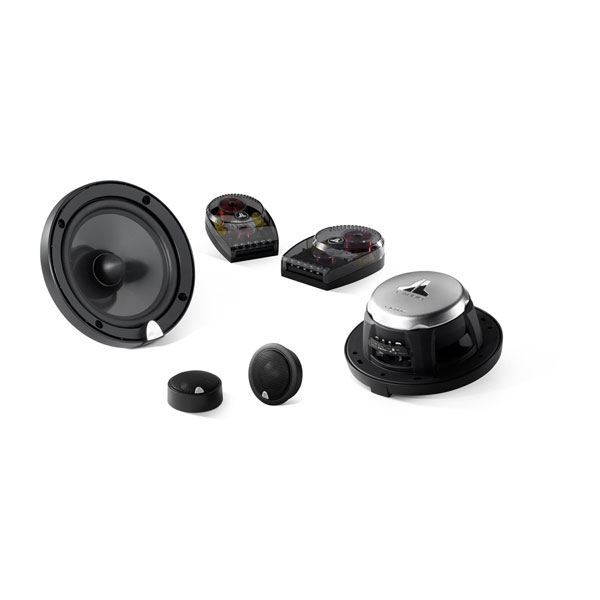

6" Two-way Coaxial/Component System (C3-600)

Part Number 010-03349-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

OUTSTANDING PERFORMANCE. MAXIMUM VERSATILITY.

Get the perfect installation — whether it’s a separate woofer and tweeter or a coaxial system. With C3 convertible component systems, the same product can be deployed in either configuration while delivering amazing sound quality.

CONVERTIBLE COMPONENTS FOR MORE FLEXIBLE INSTALLATIONS

ELEVATED FRAME COOLING^™ SPEAKER DESIGN IMPROVES POWER HANDLING

DMA-OPTIMIZED WOOFERS FOR BETTER BASS RESPONSE

PURE SILK DOME TWEETERS FOR SMOOTHER, CLEANER SOUND

TRUE TWO-WAY OUTBOARD CROSSOVERS

1-YEAR WARRANTY

General
Sizes	1"/5 x 7"/5.25"/6"/6.5"
Continuous power handling (RMS)	75 W
Sensitivity (SPL @ 1 W/1 m)	90 dB 6": 89.5 dB
Frequency response (+/- 3 dB)	5.25"/5 x 7"/6.5": 48 Hz-25 KHz ± 3 dB 6": 48 Hz-25 KHz 1": 4 kHz-25 KHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	25-150 W/Channel
Voice coil diameter	1.2" (30 mm)
Cone material	Mineral-filled polypropylene
Tweeter type	Silk Dome
Tweeter size	1" (25 mm)
Grille(s) included	yes (5 x 7": no)
Warranty	1 year
Networking & Connectivity
Speaker connections	Spade connectors
Mounting Dimensions
Frame outer diameter	5.25": 5.80" (147 mm) 5 x 7": 5.52 x 7.68" (140 x 195 mm) 6": 6.21" (157.7 mm) 6.5": 6.5" (165 mm)
Mounting depth clearance	5.25": 2.27" (58 mm) 5 x 7": 2.52" (64 mm) 6": 2.49" (63 mm) 6.5": 2.55" (65 mm)
Frontal grille protrusion	5.25": 1" (25 mm) 6"/6.5": 1.03" (26.2 mm)
Mounting hole	5.25": 4.56" (116 mm) 6": 5" (127 mm) 6.5": 5.56" (141 mm)
Grille tray outer diameter	5.25": 6" (152 mm) 6": 6.46" (164.1 mm) 6.5": 6.74" (171 mm)
Motor outer diameter	4.08" (104 mm) 5.25": 3.38" (86 mm)
Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface)	5.25": 0.69" (18 mm) 5 x 7": 0.78" (20 mm) 6": 0.81" (20.6 mm) 6.5": 0.75" (19 mm)
Tweeter Specifications
Flush mount fixture diameter	2.12" (54 mm)
Surface mount fixture diameter	1.9" (49 mm)
Flush mount mounting hole diameter	1.875" (48 mm)
Flush mount mounting depth	0.71" (18 mm)
Flush mount tweeter frontal protrusion	0.32" (8 mm)
Surface mount tweeter frontal protrusion	0.95" (24 mm)
Crossover Specifications
Width	3.36" (85 mm)
Height	1.44" (37 mm)
Depth	4.72" (120 mm)

Component Tweeters (C3-100ct)

Two tweeters
Two inline crossovers
Two flush mount tweeter housings
Two surface mount tweeter housings
Four 1" mounting screws (for surface mounting)
Two metal spring clips (for flush mounting)
Two 30 mm machine screws

Component Systems (C3-525, C3-570, C3-600, C3-650)

Two woofers
Two tweeters
Two crossovers
Eight speed clips
Two 0.250" female crimpable connectors
Two 0.185" female crimpable connectors
Two 0.185" male crimpable connectors
Two 0.110" male crimpable connectors
Four 0.110" female crimpable connectors
Twelve 1-1/4" speaker mounting screws
Two flush mount tweeter housings
Two surface mount tweeter housings
Four 1" mounting screws (for surface mounting)
Two metal spring clips (for flush mounting)
Two 30 mm machine screws
Twelve crimpable spade connectors
Two grilles with JL Audio logo badges

Component Woofers (C3-650cw, C3-600cw and C3-525cw)

One woofer
Six 1-1/4" mounting screws
One grille with JL Audio logo badge
