JL Audio Custom-Fit Car Speakers | Mid-Tweeter System | Garmin | Audio

JL Audio Custom-Fit Car Midtweeter System

JL Audio Custom-Fit Car Midtweeter System

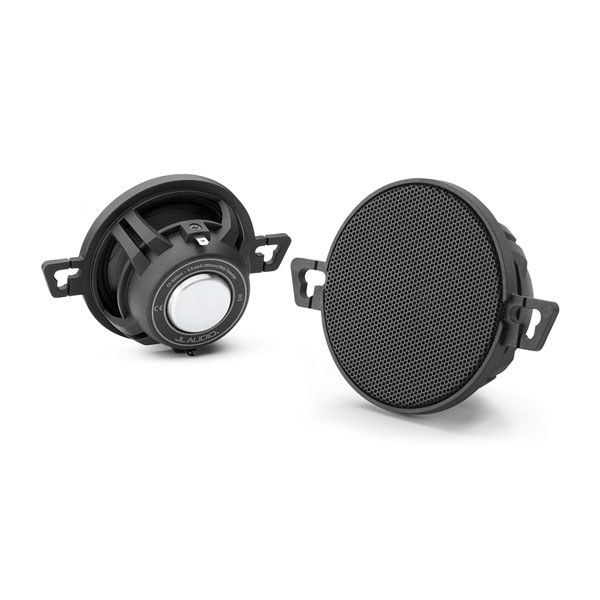

3.5" Midtweeter System (CF-350mt)

Part Number 010-03409-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

GREAT SOUND AND A PERFECT FIT

Custom-fit (CF) speakers from JL Audio are engineered to deliver pure, clear midrange audio output in many of today’s most popular vehicles, including Chevrolet, GMC, Cadillac, Dodge, Jeep, RAM, Toyota and more. The units’ slimline designs offer easy, drop-in installation in existing factory speaker locations.

DIRECT FIT IN POPULAR VEHICLES

2.75- OR 3.5-INCH SIZES FOR USE AS MIDTWEETERS OR MIDRANGE DRIVERS

SLIMLINE FRAMES AND BREAKAWAY MOUNTING TABS OFFER AN EASY FIT

IN-LINE, SECOND-ORDER HIGH-PASS FILTERS INCLUDED

HANDLES HARSH HEAT AND UV EXPOSURE IN DASHBOARD LOCATIONS

2-YEAR WARRANTY

WHAT YOU'LL LOVE

ENGINEERED FOR PERFORMANCE

The CF series’ ultralight, fiber-reinforced pulp cone features a custom “S” roll surround for greater efficiency and extended high-frequency response. The speakers can be used as midtweeters in passive systems — or as true midrange drivers or midtweeters in active systems.

DMA-OPTIMIZED SPEAKERS

Proprietary motor, suspension and cone modeling systems are used to achieve outstanding linearity, low distortion and stellar sound quality. A flat, progressive-roll spider ensures linear compliance, while neodymium magnets keep the speakers light while offering optimal flux density.

ADVANCED FRAME DESIGN

Benefiting from years of design experience, the robust JL Audio CF series speakers feature glass-filled, high-temperature polymer frames outfitted with insert-molded terminals and low-profile perforated metal grilles designed for easy, drop-in installation.

HIGH-PASS PASSIVE FILTERS

For passive applications as midtreble speakers, CF series models include external high-pass filters that serve to enhance smoothness and improve power handling. The speakers can also be used actively as true midrange or midtweeter drivers to create outstanding two-way or three-way systems.

MADE TO FIT

CF midrange speakers are available in 2.75- or 3.5-inch sizes to provide easy direct installation in a variety of existing OEM interior configurations.

POWERFULLY ADAPTABLE

On a wide range of car audio applications, the CF speaker system delivers superb sound when powered by an amplifier in the 10–50 watts-per-channel range.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

General
Warranty	1 year
Sizes	2.75"/3.5"
Continuous power handling (RMS)	2.75": 30 W 3.5": 35 W
Sensitivity (SPL @ 1 W/1 m)	2.75": 82 dB 3.5": 86 dB
Frequency response (+/- 3 dB)	450 Hz-20 KHz ± 3 dB
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	2.75": 10-40 W/Channel 3.5": 10-50 W/Channel
Cone material	Fiber-reinforced pulp
Grille(s) included	yes
Networking & Connections
Speaker connections	Spade connectors
Mounting Dimensions
Frame outer diameter	2.75": 2.85" (72 mm) 3.5": 3.46" (88 mm)
Mounting depth clearance	2.75": 1.39" (35 mm) 3.5": 1.59" (40 mm)
Frontal grille protrusion	0.26" (7 mm)
Mounting hole	2.75": 2.48" (63 mm) 3.5": 3.12" (80 mm)
Motor outer diameter	1.29" (33 mm)

Two mid-tweeters
Two crossovers
Two 0.185" female crimpable connectors
Two 0.110" female crimpable connectors
Eight 1" mounting screws
