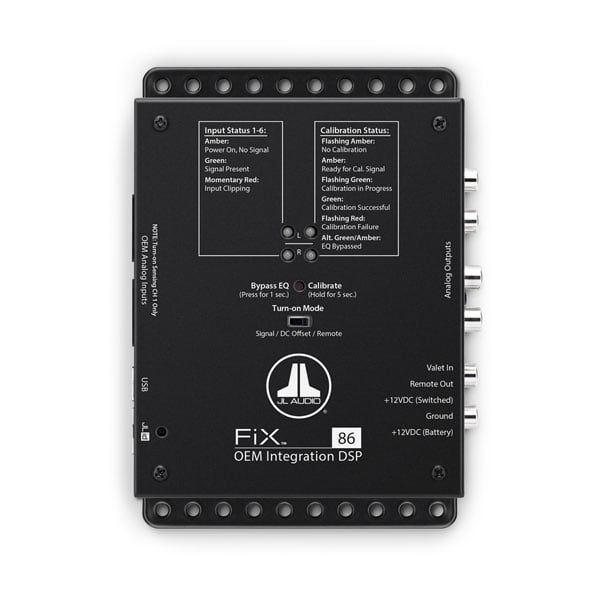

JL Audio FiX OEM Integration DSP

Processor with 8-input and 6-output Channels (FiX-86)

Part Number 010-03167-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

TURN YOUR FACTORY RADIO INTO AN AFTERMARKET DREAM

The state-of-the-art FiX digital signal processor (DSP) is engineered to deliver world-class sound from factory audio systems, without replacing the OEM source unit. FiX 82 and FiX 86 automatically correct time-delayed factory outputs prior to signal summing and EQ correction.

WORLD-CLASS SOUND FROM YOUR FACTORY RADIO

USER-ADJUSTABLE 10-BAND GRAPHIC EQUALIZERS

FiX AND SUM OEM SIGNAL

30-SECOND, SINGLE-BUTTON CALIBRATION

2 OR 6 RCA OUTPUTS

2-YEAR WARRANTY

WHAT YOU'LL LOVE

FiX OEM SIGNAL

With a powerful 24-bit DSP processor and quad 1/3 octave equalizers on board, complex factory signals are combined and level matched automatically into flat, full-range stereo signals.

EASY CALIBRATION

Unlike typical OEM interface products, the FiX DSP automatically corrects time-delayed factory outputs prior to signal summing and EQ correction. Calibration takes just a single button press and about 30 seconds to complete, with no special equipment needed.

SOFTWARE DIAGNOSTIC

Using the TüN software via USB, you can access a complete suite of diagnostic panels that show the frequency response of input signals as well as the corrected outputs. Adjustments can be made to input polarity, muting and filtering, and new calibrations can be initiated from the PC as well.

ANY OEM INPUT

The 8 channel inputs accept virtually any OEM analog audio signal — from low-voltage, line-level to high-power, amplified speaker-level outputs (up to 30-volt RMS).

POWER CONTROLLER

The FiX processor is designed to perform as a turn-on and turn-off controller for the aftermarket components in your system. There are three selectable options to control the method of turn-on: +12-volt remote, signal sensing or DC offset.

USER-ADJUSTABLE EQ

By clicking on the Tune tab of the TüN interface, you can also access four user-adjustable 10-band graphic equalizers to fine-tune the output signals.

FiX PROCESSOR TECHNOLOGY

JLID PROTOCOL COMMAND

This proprietary JL Audio protocol provides FiX and TwK processors with the connection of a wired controller.

DIFFERENTIAL-BALANCED INPUTS

Combating induced cable noise, this technology allows for the use of conventional RCA cables while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.

General
Input channels	8
Output channels	FiX-82: 2 FiX-86: 6 (Front/Rear/Sub Output Pairs)
Physical dimensions (Height)	1.85" (47 mm)
Physical dimensions (Width)	4.29" (109 mm)
Physical dimensions (Depth)	6.14" (156 mm)
Weight	2.58 lbs (1.17 kg)
Power supply type	Regulated DC-DC SMPS
Operating voltage	10-16 VDC
Warranty	2 years
Audio
Signal-to-Noise Ratio @ 4 V (RMS)	96 dB
THD+N @ Rated Power	0.02% (20 Hz-20 kHz)
Input voltage range	250 mV-30 V RMS
Minimum input voltage	10 mV RMS
Input level setting	Fully automatic
Analog output	Unbalanced, stereo RCA jacks
Digital output	FiX-82: Optical (Toslink) output (S/PDIF)
Output impedence	450 Ω
Current consumption (Standby)	<1.5 mA
Current consumption (Idle)	0.7 A
Fuse rating	1 A
Signal Processing
Audio resolution	24 bit/48 kHz
Number of EQ bands	30 x 2 Channels
EQ resolution	1/3 octave (25 Hz-20 kHz)
Remote level control	FiX-82: Optional (DRC-100) FiX-86: Optional (DRC-100 or DRC-200)
Remote level modes	Master Volume Control, Handsfree Optimization, LED Status Reporting (DRC-200 adds Subwoofer Level Control)

Processor
Four 4-pin Euroblock connectors
One 5-pin Euroblock connector

JL Audio FiX OEM Integration DSP
