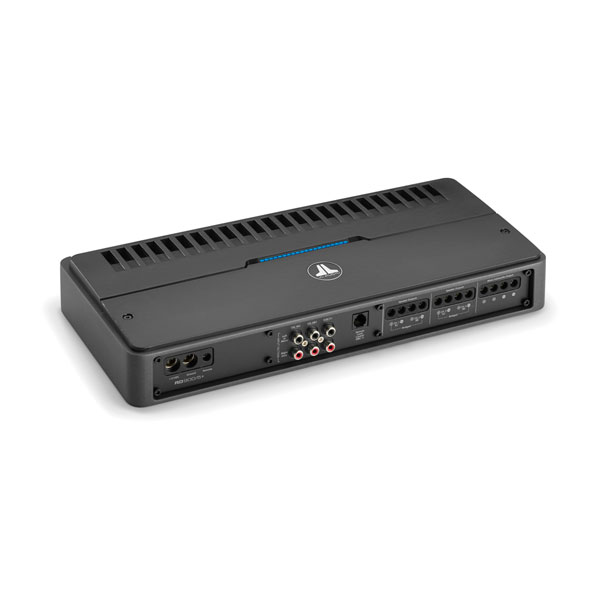

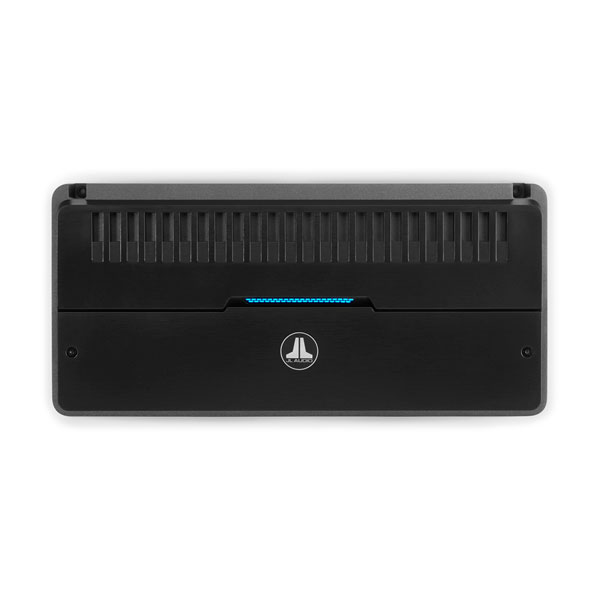

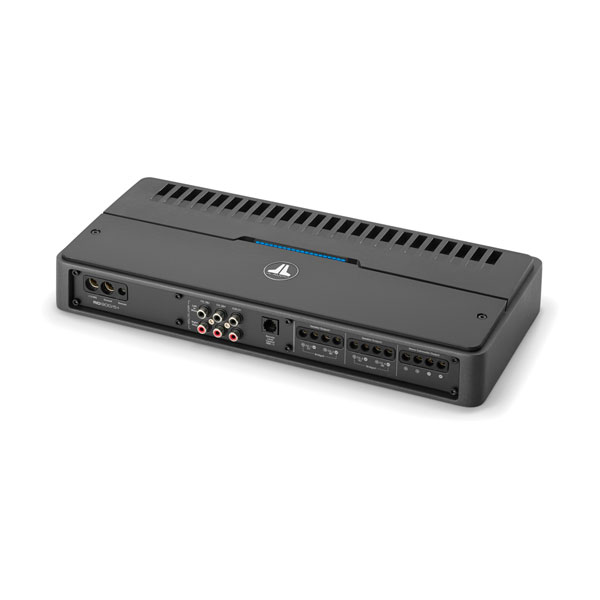

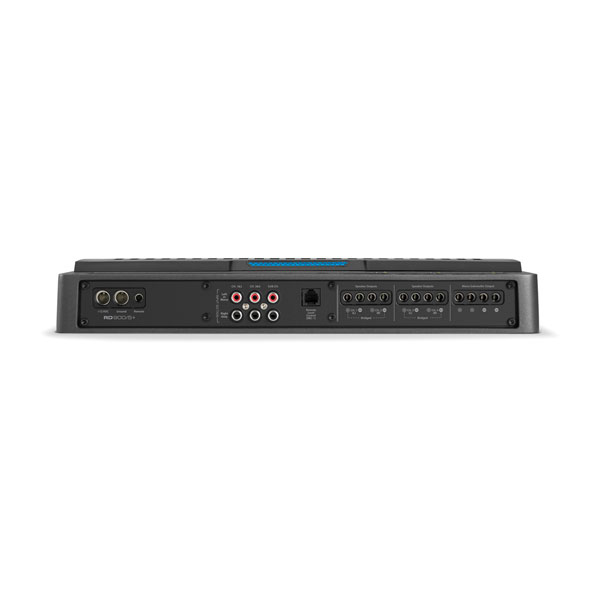

JL Audio RD Car System Amplifier

Part Number 010-03884-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

SLEEK, POWERFUL, PACKED WITH VALUE

The look is amazing, and the performance backs it up. Designed as a total “one-box solution,” this RD series amplifier from JL Audio can comfortably drive a complete 4-satellite speaker system plus a subwoofer — all with a robust 900 watts of power.

12-DECIBEL/OCTAVE HIGH-PASS OR BAND-PASS FILTER WITH DEDICATED LOW-PASS FILTER ON SUBWOOFER CHANNEL

SELECTABLE INPUT VOLTAGE: LOW (200 mV TO 2-VOLT RMS) TO HIGH (800 mV TO 8-VOLT RMS)

3 TURN-ON OPTIONS: +12-VOLT REMOTE WIRE, SIGNAL SENSING OR DC OFFSET

ONBOARD LED CLIPPING INDICATOR SIMPLIFIES LEVEL SETTING

SIGNAL ROUTING FLEXIBILITY WITH SELECTABLE INPUT MODE AND TYPE

2-YEAR WARRANTY

WHAT YOU'LL LOVE

EFFICIENT CLASS-D DESIGN

Small size, minimal heat and lots of power — Class-D amplifier design offers significant advantages. And our NexD^™ switching technology adds even more, using enhanced pulse width modulation techniques to boost the amplifier’s bandwidth while minimizing distortion and improving efficiency.

CLEAN, POWERFUL, RELIABLE

Churning out 900 watts of total power — 100 watts from each of its 4 channels into a 2-ohm load (14.4 volts, 1% THD) plus a robust 500 watts for a subwoofer — this RD series amp brings stunning output to your audio system. Each pair of main channels is also fully bridgeable, enabling an ultrapowerful 3-channel amplifier setup.

STUDIO-GRADE SIGNAL PROCESSING

Each of the amplifier’s main channels is equipped with a 12-decibel/octave high-pass filter, with an additional band-pass filter on its rear channels and a dedicated low-pass filter for the subwoofer channel. All 3 crossovers offer continuously variable frequency selection from 50–500 Hz for precise filtering.

LED CLIPPING INDICATOR RINGS

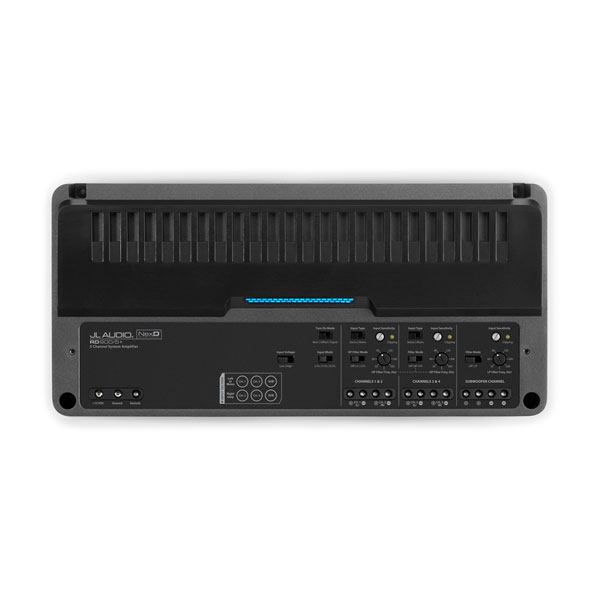

An LED clipping indicator light on the control panel lets you quickly set your amplifier’s input sensitivity, without the need for additional test equipment.

EASY CONNECTIVITY

With “input type” switches on the stereo channel sections, RD series amps can eliminate the need for Y-adapters when bridging stereo output channels.

BAND-PASS CROSSOVER

When used as a system amplifier, the band-pass crossover feature enables a two-way active configuration.

AUDIO TECHNOLOGIES

DIFFERENTIAL-BALANCED INPUTS

Combating induced cable noise, this technology allows for the use of conventional RCA cables while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.

NEXD SWITCHING TECHNOLOGY

Using enhanced pulse width modulation techniques, NexD technology achieves exceptional audio fidelity and efficiency while delivering high-power output from very compact amplifier designs.

General
Channels	5
Physical dimensions (Height)	2.13" (54 mm)
Physical dimensions (Width)	14.66" (372 mm)
Physical dimensions (Depth)	6.96" (177 mm)
Weight	7.15 lbs (3.6 kg)
Operating voltage	10-15 VDC
Operating temperature range	–4º to 149º F (–20º to 65º C)
Warranty	2 years
Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	Main: 70 W x 4 Sub: 225 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)	Main: 100 W x 4 Sub: 500 W x 1
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)	Main: 60 W x 4 Sub: 200 W x 1
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)	Main: 90 W x 4 Sub: 350 W x 1
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels	>104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel	>103 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels	>84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel	>83 dB
Damping factor @ 4 Ω	>150/50 Hz
Damping factor @ 2 Ω	>75/50 Hz
THD+N @ Rated Power: Main Channels	<1% @ 4 Ω
THD+N @ Rated Power: Subwoofer Channel	<1% @ 4 Ω
Frequency response (+0, -1dB): Main Channels	12 Hz-22 kHz
Frequency response (+0, -1dB): Subwoofer Channel	10 Hz-500 Hz
Input voltage range @ RCA inputs	Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Input impedance	10 kΩ (Low) 2.7 kΩ (High)
Current consumption (Idle)	1,900 mA-2,000 mA
Current consumption (Max)	70-80A
Fuse rating	80 A
Recommended fuse type(s)	AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge	4 AWG wire
Protection circuits	Over temperature, Ground short, Speaker overcurrent
Signal Processing
Filter mode(s): Channels 1 & 2	High-pass only (Off, x1, x10)
Filter Slope(s): Channels 1 & 2	12 dB/octave
Filter frequency range: Channels 1 & 2	50 Hz-500 Hz (x10: 500 Hz-5 kHz)
Filter mode(s): Channels 3 & 4	Off, High-pass or Bandpass
Filter Slope(s): Channels 3 & 4	12 dB/octave
Filter frequency range: Channels 3 & 4	50 Hz-500 Hz
Filter mode(s): Subwoofer Channel	Off/Low-pass
Filter slope(s): Subwoofer Channel	12 dB/octave
Filter frequency range: Subwoofer Channel	50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers	yes
Remote level control	Optional (RBC-1)
Remote level modes	Sub Channel only
Channel input mode switch	yes (2/4/6 Channels)
Pass-through preamp output	Buffered

RD 5-channel system amplifier
Hex wrench
Documentation

JL Audio RD Car System Amplifier
