CS 1522

Part Number 010-02243-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

SEND YOUR CREW TO CATCH MORE FISH

Made for fishing vessels, the CS 1522 is a keyed 15” stand-alone sonar fishfinder with chart compatibility that offers reliable quad frequency and ClearVü and SideVü sonars at a glance on its portrait display.

Under the sun, yet the large, glass-bonded screen is still readable.

4-Split Frequency means better efficiency in fish school detection.

1 kW dual-channel CHIRP capabilities come standard.

Your sonar, your choice with our GSD™ black boxes.

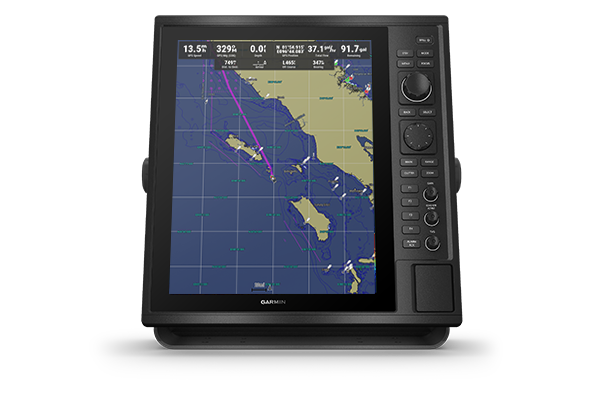

Go to where you know with custom-made maps using Quickdraw Contours.

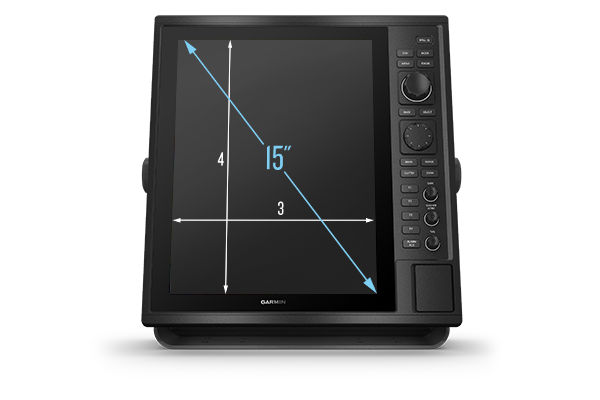

LARGE DISPLAY

Get sonar quickly with the large 15” portrait-oriented (4:3), sunlight-readable screen. Its dedicated knobs make key features easy to access on the water.

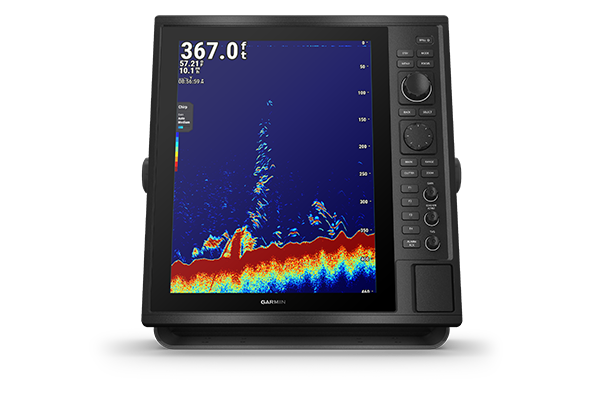

CHIRP SONAR

Enjoy crystal-clear 1 kW dual-channel CHIRP sonar, and enjoy easy-to-read fish arches with excellent target separation.

4-SPLIT FREQUENCY DISPLAY

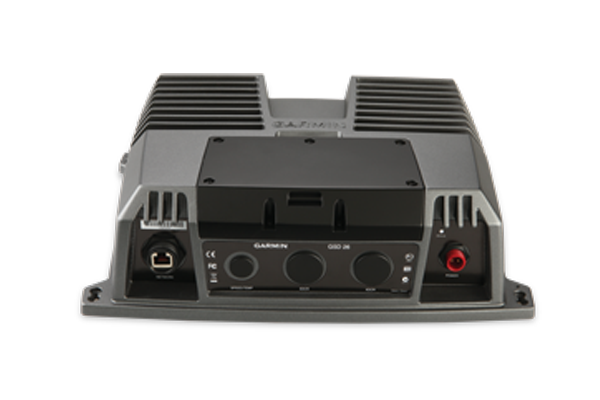

The CS 1522 device supports our GSD black boxes, allowing you to add a variety of sonar options, including scanning sonar.

APPELLANT AUDACES

Get more efficient fish school detection with a side-by-side quad frequency display and ClearVü and SideVü sonars.

ACRI EPICURI INVIDUNT

Amice amici amicis amicitia amicitiae amicitiam amicitias amicorum amicos.

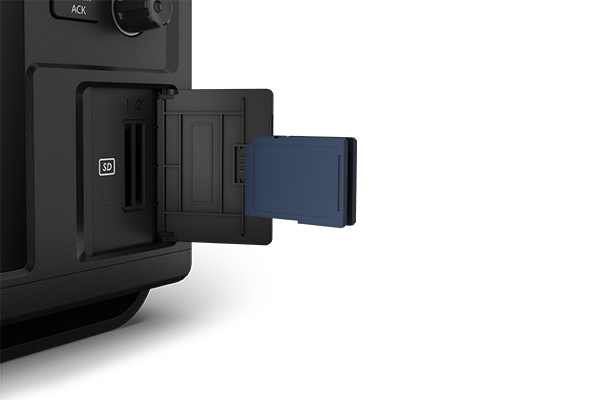

KEEP UP EASILY

The dual SD card slots make it simple to back up your data and stay up to date on software updates.

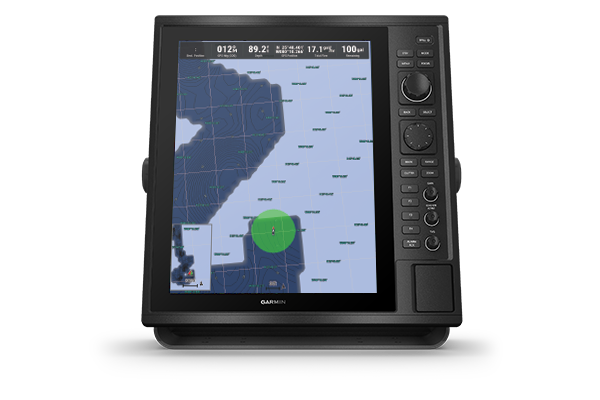

QUICKDRAW CONTOURS

CS 1522 supports Quickdraw Contours so you can draw your own maps with up to 1’ contours as you fish.

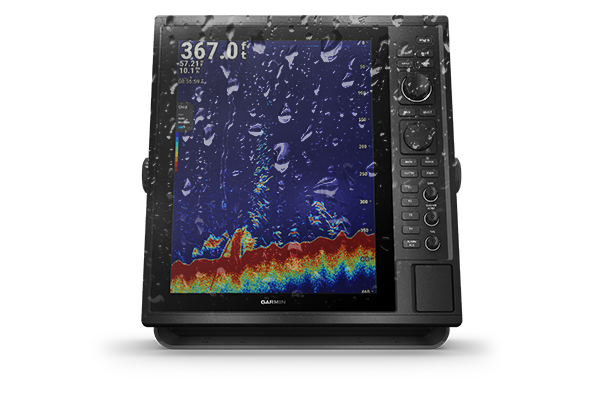

WATER-RESISTANT

The device is IP26/IP27 (IEC60529) in water resistance.

Compatible Transducer List Purchase New Charts

General
PHYSICAL DIMENSIONS	355 x 376.7 x 82.7 mm
DISPLAY SIZE	15" diagonal, (228.1 x 304.1 mm diagonal)
DISPLAY RESOLUTION	1024 x 768 pixels
DISPLAY TYPE	XGA
WEIGHT	4.0 kg (6.0 kg with bail mount)
WATER RATING	IP26/IP27 (IEC60529)
POWER SUPPLY	10 to 36 VDC
POWER CONSUMPTION	4 A (typical current draw @ 12 VDC) 6.5 A (Max. current draw @ 12 VDC)
ANTENNA	external over BNC
MOUNTING OPTIONS	Flat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge are required.)
RECEIVER	10 Hz GPS/GLONASS/GALILEO/BEIDOU/QZSS/GAGAN AND SBAS
Multi-languages support	English, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesia Bahasa, Malaysia Bahasa, Vietnamese, Burmese, Hindi, Gujarat

Maps & Memory
PRELOADED MAPS	Worldwide basemap
Bluechart compatibility
ACCEPTS DATA CARDS	2 SD card slots; 32 GB Max. storage
WAYPOINTS	5,000
ROUTES	100
TRACKS	50 saved tracks

Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
FREQUENCIES SUPPORTED	Traditional: 50/77/200 Dual Channel CHIRP: 28-210 SideVü/ClearVü: CHIRP 260/455/800 (dependent on transducer)
TRANSMIT POWER	1 kW traditional; 1 kW CHIRP; 500 W SideVü/ClearVü
CHIRP SONAR TECHNOLOGY	(Built-in)
CLEARVÜ
SIDEVÜ
MAXIMUM DEPTH	5,000 ft (1,500 m) at 1kW (depth capacity is dependent on water bottom type and other water conditions)
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
WATER TEMPERATURE LOG AND GRAPH
SONAR RECORDING
SONAR HISTORY REWIND
GSD BLACK BOX SONAR SUPPORT
QUICKDRAW CONTOURS

Connections
NMEA 2000 COMPATIBLE
NMEA 0183 COMPATIBLE
TRANSDUCER PIN NUMBERS	12-PIN * 1
GSD sonar	1
GPS antenna	BNC

CS 1522
8-pin transducer to 12-pin sounder adapter cable
Power cable
Bail mount kit with knobs
Flush mount kit with gasket
Protective cover
Trim caps
Install template
Hardware
Documentation

Download the File

Software License Agreement

By downloading, installing, or using this software, you agree to be bound by the terms and conditions of the following license agreement. Please read this agreement carefully.

Garmin Corporation ("Garmin") grants you a limited, non-exclusive license to use the upgrade software ("Software") in binary executable form in the normal operation of the applicable Garmin products. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin. This license is personal to you and you may make copies of the software only for your personal use. You agree that this license agreement does not need to be signed for it to take effect.

The software is provided on an "as is" basis without warranty of any kind — either expressed or implied — including, without limitation, any implied warranties of merchantability or fitness for a particular purpose. Garmin does not warrant the performance of the software or that the software will meet your requirements or operate error free.

You acknowledge that this Software is the property of Garmin and is protected under United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software are valuable trade secrets of Garmin and that the Software in source code form remains a valuable trade secret of Garmin. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software.

You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America.

2024/10/18	CR1522/CS1522 ASIA software version 9.00	Download(120 MB)
2023/05/04	CX1522 Extended Simulation Data for Target Tracking and Target Association	Download(1.1 GB)
2022/08/30	CR/CS1522 Software/User manual update instructions	Download(45.6 MB)

CR1522/CS1522 ASIA software version 9.00

Changes made from version 8.00 to 9.00 New!

CR1522 MR SW

Fix maximum range issue while IMO Range Mode is OFF
Other improvements and bug fixes.

CS1522 MR SW

Add GT12M/GT17M support
Fix zoom screen control not updated with GSD 26
Other improvements and bug fixes.

CX1522 Extended Simulation Data for Target Tracking and Target Association

CR1522 Extended Simulation Data for Target Tracking and Target Association

Click on 'Download' and choose to save the file to your computer. Select an easy place to find the file, such as the 'My Documents', 'Downloads', or 'Desktop'.
Once the download is complete, double-click to open the zip file from the location it was downloaded to.
Drag the 'Garmin' folder from this location and drop it onto the card. The 'Garmin' folder should be the highest level folder on the SD card.
Power on the device and insert the card into any card slot of your device.
In Settings > System > Simulator > Setup > Simulator Mode, you could pick TT or TA out of Normal mode for extended simulations.
After the extended simulation mode is chosen, in Menu > Radar Setup > Scanner, you could pick one of the scenario for starting the TT or TA simulation.

CR/CS1522 Software/User manual update instructions

Changes made from version 7.00 to 7.50

CR1522
1. Add new 0.75 nm/mi/km Radar range table.
2. Add SART mode refinements for improving visibility of SART signal.
3. Add range mode toggle to switch between IMO-style and Garmin-style radar PIP appearances.
4. Other improvements and bug fixes.
CS1522
1. Adjust sonar transmit timeout from 100ms to 250ms.
2. Other improvements and bug fixes.
