GPSMAP 9010

Premium chartplotters with 4K touchscreen displays.

Part Number 010-03175-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

PLOT YOUR PARADISE

FROM YOUR PARADISE

SEE YOUR CHARTS, VIEW ENTERTAINMENTAND MORE IN UP TO 4K

CLARITY, CONTROL AND LUXURY AT THE HELM

COMPLETELY INGEGRATED

BUILD AN EXTENSIVE, TOP-OF-THE-LINE ECOSYSTEM

THE SPEED YOU NEED

UP TO 7 TIMES FASTER PROCESSINGPOWER AND GIGABIT SPEEDS ON THEGARMIN BLUENET™ NETWORK

PARADISE STARTS HERE

It’s the integrated high-resolution touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials.

PREMIUM IPS SUNLIGHT-READABLE TOUCHSCREEN DISPLAY

UP TO 7 TIMES FASTER PROCESSING POWER THAN PREVIOUS GENERATIONS

GET CLARITY LIKE NEVER BEFORE ON A HIGH-RESOLUTION DISPLAY

SUPPORTS GARMIN NAVIONICS+ CHARTS WITH AUTO GUIDANCE+ TECHNOLOGY¹

GIGABIT SPEEDS ON THE GARMIN BLUENET NETWORK

NETWORK WITH MULTIPLE CHARTPLOTTERS, CAMERAS AND MORE

WHAT YOU'LL LOVE

PREMIUM CHARTPLOTTER

The HD IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.

FASTER. MUCH FASTER.

Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes¹ with lightning speed with an optional Garmin Navionics+ subscription.

GARMIN BLUENET NETWORK

Build extensive networks with multiple chartplotters, cameras, radars and sonars — and enjoy gigabit-speed networking.

ENTERTAINMENT OPTIONS

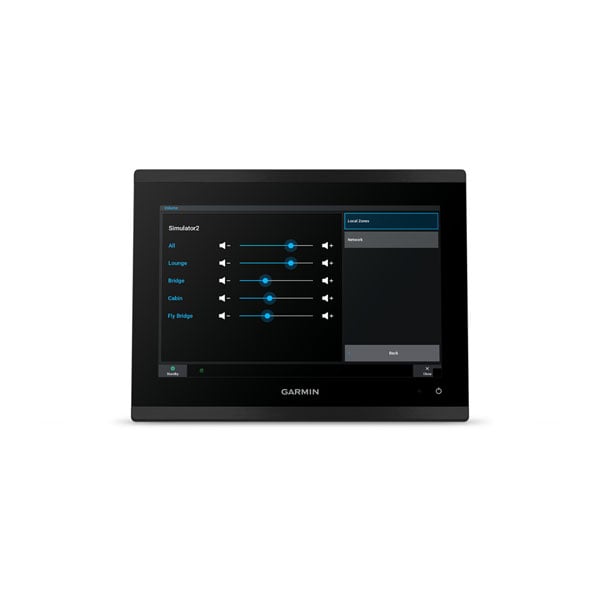

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

GARMIN SAILASSIST SAILING FEATURES AND SAILING POLARS

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, and more. Plus the polar table shows key data, so you know whether you need to adjust sail trim.

CONNECT YOUR ECOSYSTEM

Take command through digital system integrations to monitor, automate and control your vessel. The chartplotter uses the NMEA 2000 network to connect to your compatible accessories.

LUXURY ON YOUR HELM

CONNECT

SOFTWARE UPDATES

Get wireless software updates via the ActiveCaptain app with your compatible smartphone or tablet.

ENGINE MONITORING

Keep tabs on engine performance with extensive engine integration.

CUSTOM LOOK

Manufacturers can customize the homepage layout and splash screen for a brand tailored experience.

NAVIGATE

MAPPING

Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates and more¹ (subscription required).

PREMIUM CHARTS

Get support for Garmin Navionics Vision+ charts with premium relief shading and satellite imagery.

KNOW WHERE YOU ARE

Get your precise location with the built-in dual-frequency 10 Hz GPS.

AUTOPILOT

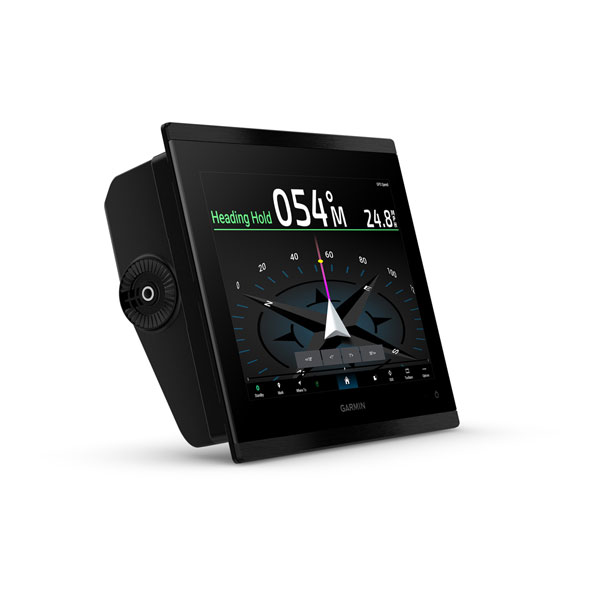

Control the autopilot with any compatible chartplotter on the network with autopilot integration.

INTEGRATE

CONNECT CAMERAS

Get extensive camera support and control to see footage directly on the chartplotter.

CONTROL WITH YOUR WATCH

Connect to your chartplotter with your compatible Garmin smartwatch.

WIRELESS CONNECTIVITY

Connect compatible devices with integrated Bluetooth and ANT technologies.

FISH MAPPING

Get comprehensive fishing data with the Fish Mapping feature from SiriusXM Radio (accessory purchase and subscription required).

VERBAL COMMANDS

Use spoken commands to control the chartplotter through your compatible headset or quatix smartwatch.

WEATHER-RESISTANT

The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.

¹Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

Purchase New Charts

General
Dimension	10.24" x 7.87" x 3.54" (26 cm x 20 cm x 9.1 cm)
Weight	5.55 lbs (2.52 kg)
Water rating	IPX7
Touchscreen	yes
Display Type	WUXGA, IPS; Edge Lit backlight
Display Size	8.54" x 5.34" x 10.1" diagonal (21.7 cm x 13.6 cm x 25.6 cm diagonal)
Display Resolution	1920 x 1200 pixels

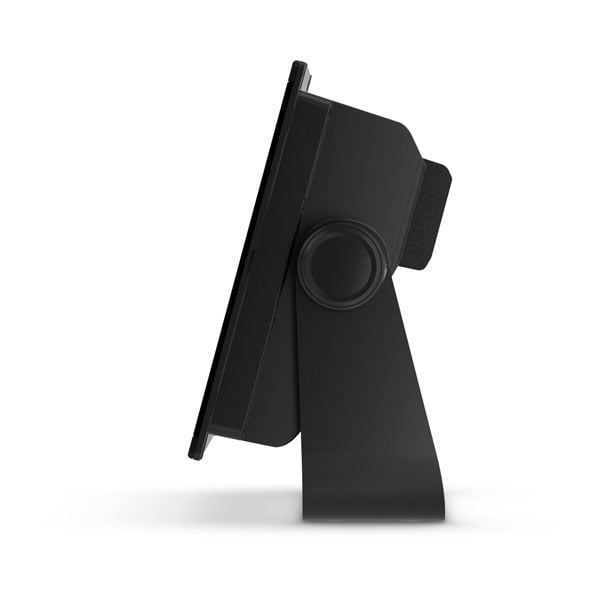

Mounting Options	Bail, flat or flush
Input	Touchscreen
Polarized Support	yes
Maps & Memory
Accepts Data Cards	2 microSD^™ cards (on rear of product)
Waypoints	5,000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100
Sensors
GPS	yes
GLONASS	yes
Galileo	yes
BeiDou	yes
Has built-in receiver	yes
Receiver	10 Hz
NMEA 2000 Compatible	yes
NMEA 0183 Compatible	yes
Supports WAAS	yes
Supports multi-band, multi-constellation GPS	yes
Optional Map Support
BlueChart g3	yes
BlueChart g3 Vision	yes
LakeVü g3	yes
LakeVü g3 Ultra	yes
Garmin Navionics+	yes
Garmin Navionics Vision+	yes
TOPO 100K	yes
Standard Mapping	yes
Garmin Quickdraw Contours	yes
Raster chart support	yes
Chartplotter features
Smart Mode Compatible	yes
AIS	yes
DSC	yes
Supports Fusion-Link compatible radios	yes
GCV Black Box Sonar Support	yes
ActiveCaptain compatible	yes
Supports voice commands	yes
GRID (Garmin Remote Input Device) compatible	yes
GRID 20 compatible	yes
Wireless Remote Compatible	yes
Sailing Features	yes
Spoken audio alerts	yes
OneHelm support	yes
Electrical Features
Power Input	10 to 32 Vdc
Typical current draw at 12 Vdc	2.43 A
Maximum current draw at 12 Vdc	2.8 A
Maximum power usage at 10 Vdc	29 W
Sonar Features
Displays sonar	yes
Traditional sonar (dual frequency/beam)	yes (with GCV™ black box, sold separately)
Supports built-in xCHIRP	yes (with compatible black box sonar)
Supports built-in RapidReturn	yes (with compatible black box sonar)
ClearVü	yes (with compatible black box sonar)
SideVü	yes (with compatible black box sonar)
Panoptix sonar	yes
LiveScope	yes

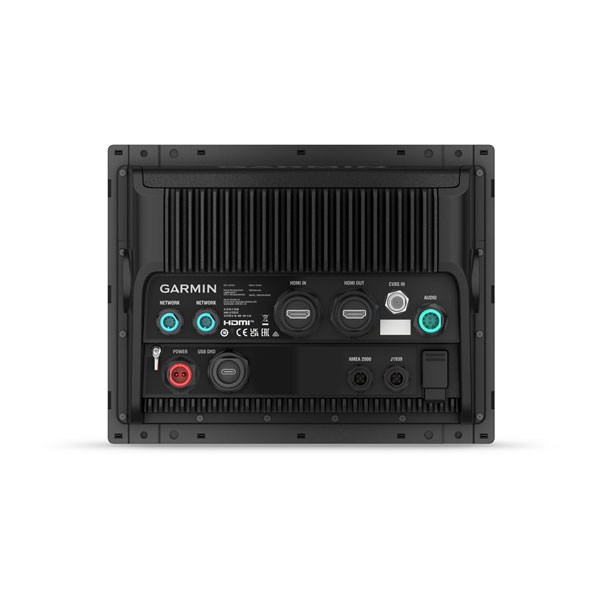

Connections
NMEA 2000 ports	1
NMEA 0183 Input (Rx) Ports	1
NMEA 0183 output (Tx) ports	1
Video input ports	1 (BNC composite); 1 HDMI (HDCP compliant)
Video output ports	1 HDMI
J1939 ports	1
Garmin BlueNet network ports	2
USB ports	yes (1x USB-C)
BLUETOOTH® pairing	yes
ANT+ (Connectivity)	yes
Garmin Wi-Fi network (local connection)	yes
Wi-Fi frequency bands	2.4 GHz & 5 GHz
Audio output	yes

GPSMAP 9010 premium chartplotter
Power cable
Backbone/drop cable (2 meters) and T-connector for the NMEA 2000^®Network
Bail mount with knobs
Flush mount kit
Protective cover
Trim piece snap covers
Documentation
