JL Audio AP Amplifier with BLUETOOTH® Technology

4 Channel Amplifier

Part Number 010-03431-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

POWER THE MOMENT

With this tough and ultracompact 4 channel amplifier featuring BLUETOOTH^® technology, you can enjoy every note from every part of your boat.

EFFICIENT CLASS-D DESIGN

STREAM AUDIO WITH BLUETOOTH TECHNOLOGY

INCLUDES WIRED REMOTE

IGNITION PROTECTED AND IP67-RATED (EXCLUDING CABLES)

COMPACT BUILD

WHAT YOU'LL LOVE

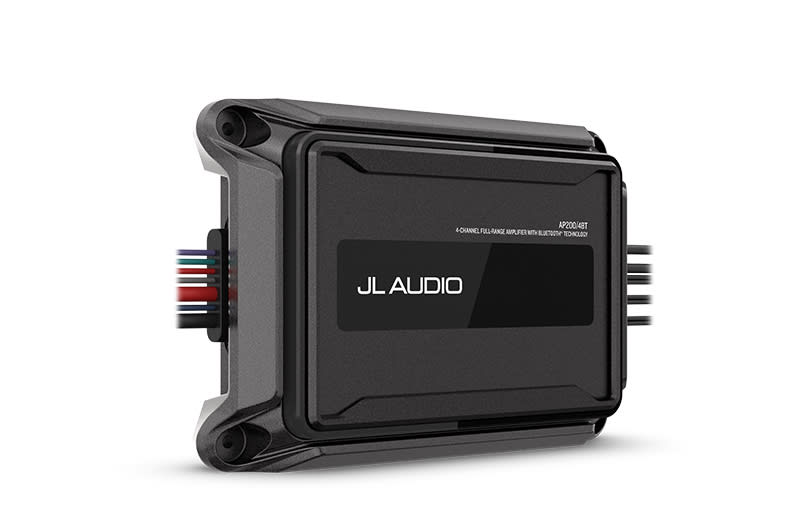

CLASS-D AMPLIFIER TECHNOLOGY

The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.

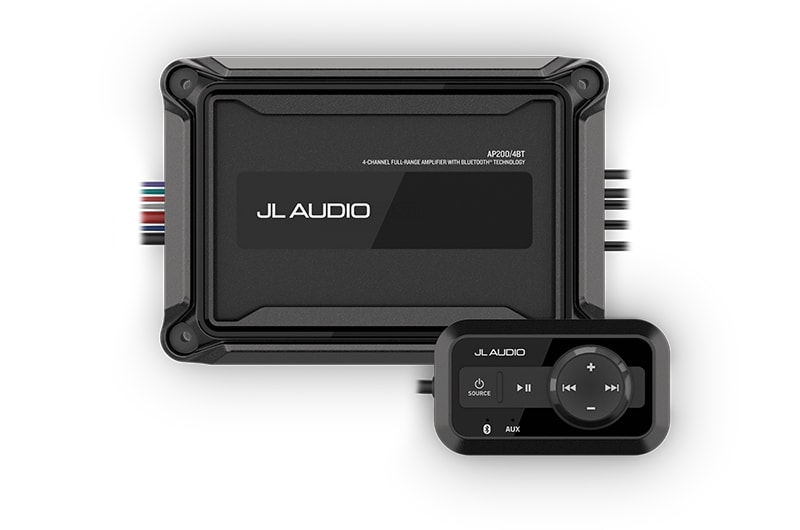

STREAM ON THE GO

This amplifier pairs with your compatible smartphone for seamless audio streaming and includes a wired remote that can be flush-, surface- or bar-mounted. Its compact size makes it a perfect addition to your small boat, jet ski or overland vehicle.

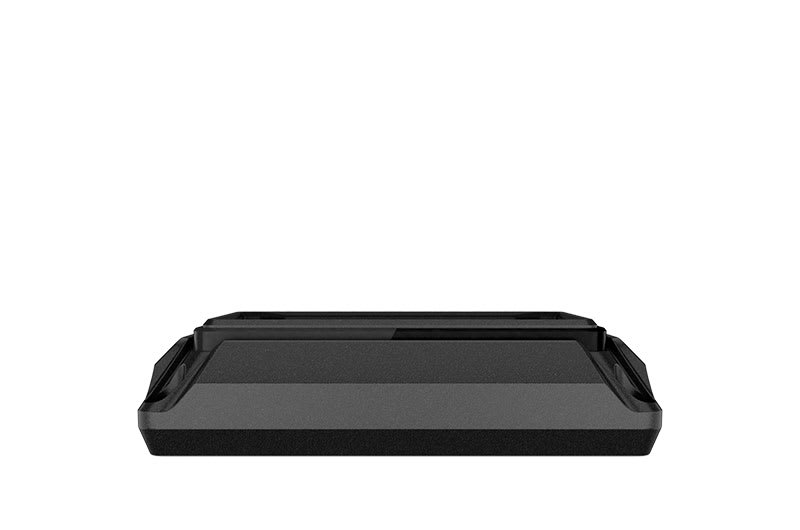

RUGGED DESIGN

This amplifier offers a superior level of durability and is built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments. The included remote is IPX7-rated.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

General
Channels	4 Channel
Physical dimensions (Height)	1.85" (47 mm)
Physical dimensions (Width)	7.28" (185 mm)
Physical dimensions (Depth)	4.90" (125 mm)
Operating voltage	9-16 VDC
Water and dust rating	IP67
Operating temperature range	4° to 149° F (-20° to 65° C)
Warranty	3 years
Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	40 W x 4/100 W x 2 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)	50 W x 4
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	>70 dB
THD+N @ Rated Power	<1% @ 4 Ω per Channel
Frequency response (+0, -1dB)	20 Hz-20 kHz
Input voltage range @ RCA inputs	Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Input impedance	11 kΩ (High) 20 kΩ (Low)
Current consumption (Standby)	<1mA
Current consumption (Idle)	<700-750mA
Fuse rating	35A
Recommended fuse type(s)	AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge	4 AWG wire
Protection circuits	Input under/over voltage Over temperature Output short circuit
Signal Processing
Bass boost EQ (0 to +18 dB @ 37 Hz)	yes

4 channel amplifier with BLUETOOTH® technology

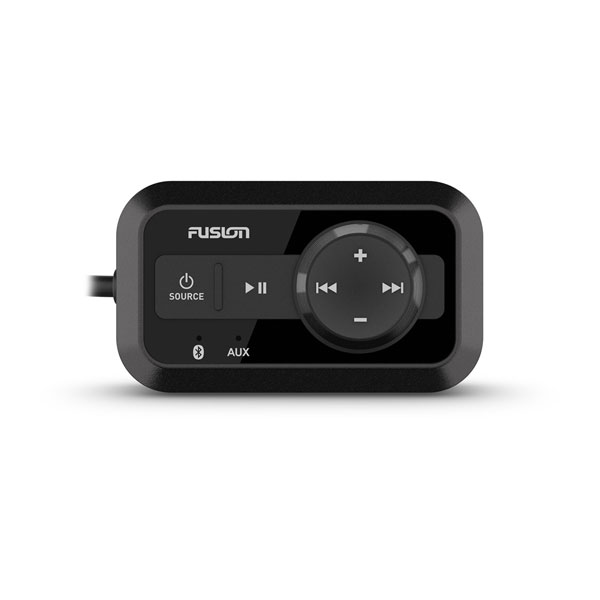

Remote controller
Surface mounting cup with four mounting screws
Four amplifier mounting screws
Flush mounting kits
Flush mounting template for the remote controller
Waterproof gasket for the remote controller
Documentation
