JL Audio Marine or Powersports BLUETOOTH Audio Receiver | Garmin | Marine

JL Audio Receiver

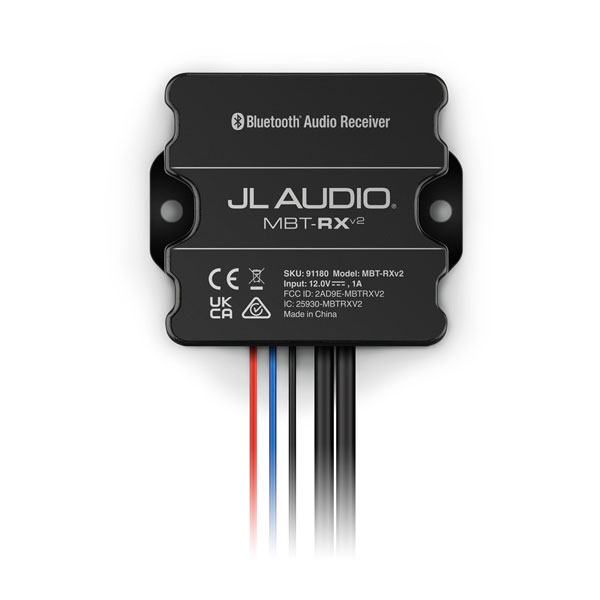

Weatherproof Receiver with Bluetooth® Technology (MBT-RXv2)

Part Number 010-03377-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

CONNECT WITH BLUETOOTH WIRELESS STREAMING

JL Audio products with Bluetooth technology make it simple to integrate your compatible streaming devices with the audio system on your boat or powersport vehicle. All models feature Bluetooth with the Qualcomm aptX HD codec for outstanding audio fidelity — and they’re built to take on the outdoor life with weatherproof construction and an IPX7 water rating.

EASILY ADD BLUETOOTH A2DP STREAMING TO ALMOST ANY AUDIO SYSTEM

INSTALL WITH HIDEAWAY REMOTE AUDIO RECEIVER OR DASH-MOUNT CONTROLLER AND RECEIVER

CONNECT WITH UP TO 35 FT (11 METERS) OF WIRELESS RANGE

HOUSED IN AN IPX7-RATED, WATER-RESISTANT CHASSIS

EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

2-YEAR WARRANTY

WHAT YOU'LL LOVE

AUDIO STREAMING SIMPLIFIED

JL Audio products with Bluetooth technology can stream your favorite tunes from compatible A2DP devices directly to your audio system — delivering dynamic, CD-like sound quality via wireless connection.

TWO INSTALL OPTIONS

The tiny MBT-RXv2 remote-mount receiver can be hidden almost anywhere, allowing easy control from your mobile device. The gauge-hole mounting design installs easily into flat panels, and an adapter plate is included for front-mount applications or where rear access is limited.

EASY BLUETOOTH PAIRING

A simple procedure wirelessly pairs your audio receiver to your streaming device. Reconnection is automatic after initial pairing, and your connected device can then control playback, volume and media selection — or use the controls provided with the MBT-CRXv3 system.

TWO AUDIO ZONES

The MBT-CRXv3 has 2 sets of stereo preamp outputs (4-volt RMS) to feed 2 main audio zones plus a dedicated subwoofer output. Independent audio zone level controls with LED color indicators ensure effortless command of your sound system while your streaming device is tucked away.

TOUCH-CONTROL CAPABLE

The gauge style MBT-CRXv3 model features large backlit controls for easy operation day or night. It connects directly to an amplifier for use as a standalone source unit or add-on receiver.

ALL-WEATHER DURABILITY

Housed in a sealed and water-resistant (IPX7-rated) chassis, these premium audio receivers are ideally suited for challenging outdoor applications and corrosive marine environments.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JL Audio is under license. Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark or registered trademarks of Qualcomm Incorporated. aptX is a trademark or registered trademark of Qualcomm Technologies International, Ltd.

General
Warranty	2 years
Physical dimensions (Height)	Controller: 2.15" (55 mm) Receiver: 2.28" (58 mm)
Physical dimensions (Width)	Controller: 2.15" (55 mm) Receiver: 2.64" (67 mm)
Physical dimensions (Depth)	Controller: 3.10" (79 mm) Receiver: 0.79" (20 mm)
Control Surface Dust/Water Rating (when properly installed)	Controller: IP67 Receiver: IPX7
Current draw (max)	Controller: 108 mA Receiver: 40 mA
Electrical Features
Power Input	Controller: 8-16 VDC Receiver: 10-16 VDC
Stereo Features
Multi-Zone technology	see Additional
BLUETOOTH® wireless technology	yes
Sources
Supported sources	Bluetooth®
Networking & Connections
RCA pre-out (left, right and subwoofer - requires external amplification)	Controller: 2 zones (L+R), 1 mono output Receiver: L + R only
Line out (requires external amplification)	Controller: 2 (L + R per zone) Receiver: 1 (L + R)
Subwoofer out (requires external amplification)	Controller: Zone 1 (1 mono output)
Wireless frequencies/protocols	Bluetooth®
BLUETOOTH® wireless range	Up to 35 ft (11 meters)
Additional
Additional	Multi-Zone Technology: Controller only

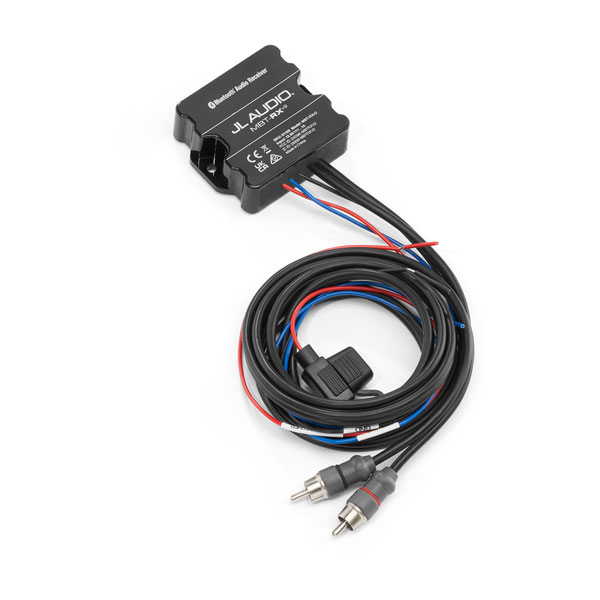

Bluetooth receiver with power/signal pigtail
