6.5" 230 Watt Coaxial Sports Chrome Marine Speakers (Pair) with CRGBW LED Lighting

Part Number 010-02432-11

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

EXPERIENCE THE POWER OF MUSIC

Pushing the boundaries of what is possible on the water, the new revamped Signature Series 3 marine speakers deliver unparalleled performance — even when exposed to harsh marine environments.

Experience industry-first marine speakers with CRGBW LED lighting¹.

Enjoy greater sound definition and higher output with CURV Cone Technology.

The silk dome tweeter provides a smooth upper frequency response and increased efficiency.

With an increase in real power, the voice coil provides a sound exclusive to the Signature Series 3.

The speakers are available in 6.5”, 7.7” and 8.8” designs with both classic and sports style grilles.

Engineered to last season after season, the speakers include a supported 3-year warranty.

DESIGNED AND ENGINEERED TO
TRUE-MARINE™ STANDARDS

Built on the True-Marine design philosophy from Fusion^®, the Signature Series 3 speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.

DESIGNED TO COMPLY
WITH ISO12216

Tested to international standards for pressure and watertightness, the Signature Series 3 speakers are designed and built to the highest industry standards for quality and robustness.

THE FINEST MATERIALS AND ACOUSTIC ENGINEERING

The Signature Series 3 speakers incorporate premium materials and marine-specific design elements. This communicates not only their premium aesthetics but also their ability to reproduce high-quality audio while out on the water.

The science of acoustic excellence.

CURV CONE TECHNOLOGY

CURV is a woven fiber composite that is heat pressed to form a lighter and stronger cone. This delivers greater sound definition and higher output while providing increased protection from marine conditions.

SILK DOME TWEETER

The silk dome tweeter provides a smooth upper frequency response and increased efficiency, which delivers crystal-clear music reproduction.

LARGE-DIAMETER VOICE COIL

Delivering an increase in real power and efficiency, the large-diameter voice coil provides a signature sound exclusive to the Signature Series 3 speakers.

FULLY SEALED CROSSOVER COMPONENTS

Fully sealed crossover components provide full protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.

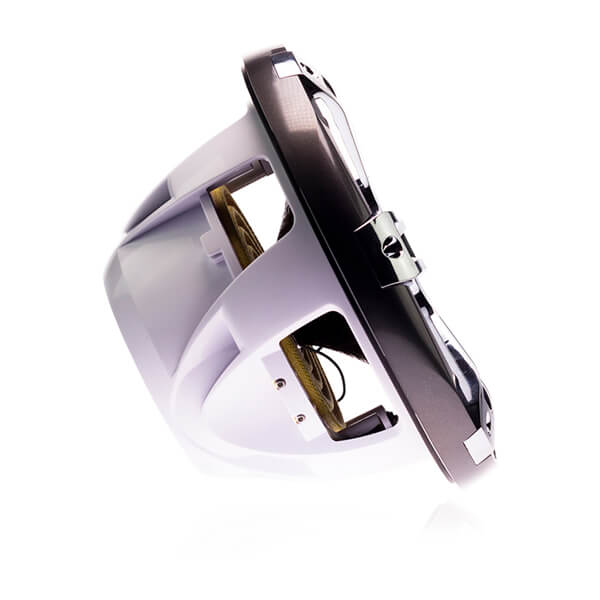

HIGH-GRADE BASKET CONSTRUCTION

The basket is constructed using high-grade engineered plastics to deliver unprecedented durability when exposed to the marine environment.

Experience an unprecedented spectrum of colors to match your audio.

PREMIUM CRGBW LED LIGHTING

Industry-first marine speakers with CRGBW (cool white, red, green, blue, warm white) illuminate an unprecedented spectrum of colors — from premium pastels to vibrant hues — to enhance your audio entertainment experience.

CONTROLLING THE CRGBW LIGHTING

Control the color (static or dynamic), brightness, light mode and speed by using the optional MS-CRGBWRC wireless remote control (sold separately) or from a Garmin multifunction display via OneHelm™ integrated digital switching (lighting partner controller required).

Premium aesthetics to match modern boat design trends.

SPORTS WHITE SPEAKERS

The Signature Series 3 sports white speakers are available in 6.5”, 7.7” and 8.8” sizes and feature industry-first CRGBW LED lighting options.

CLASSIC WHITE SPEAKERS

The Signature Series 3 classic speakers are available in 6.5”, 7.7” and 8.8” sizes and feature a timeless, elegantly styled perforated metal grille to blend with the aesthetics of your boat.

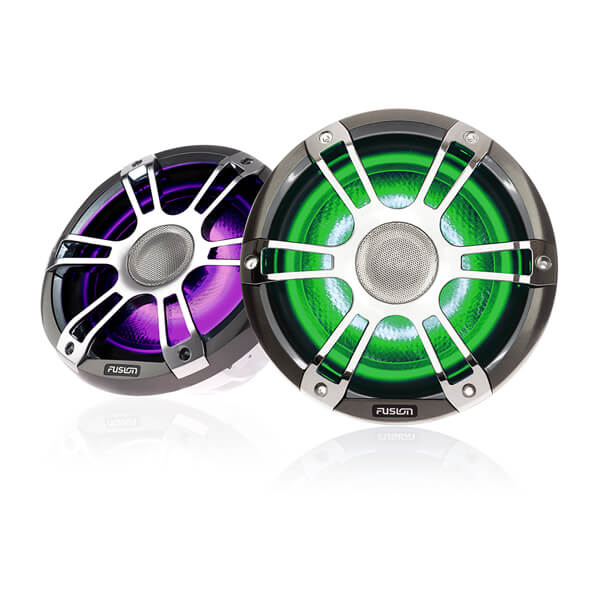

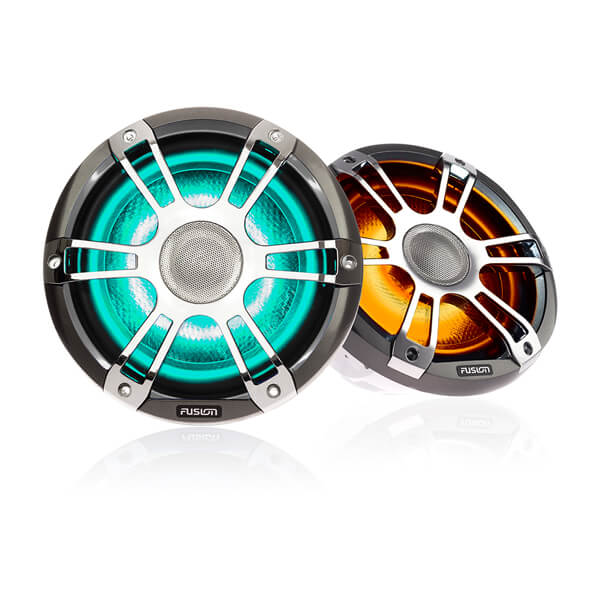

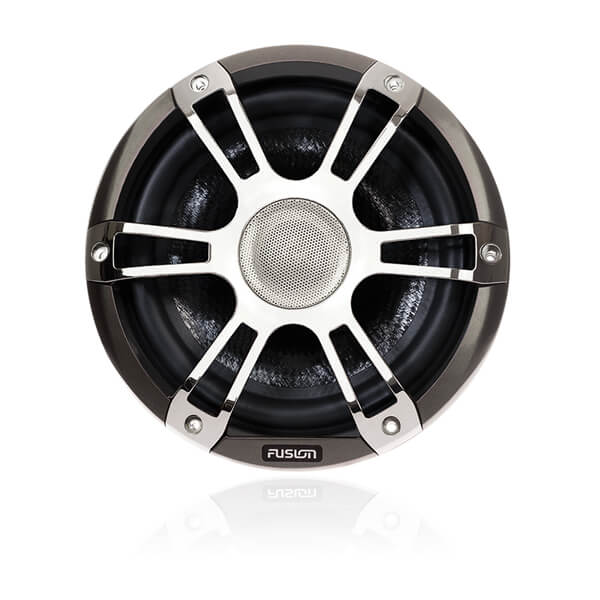

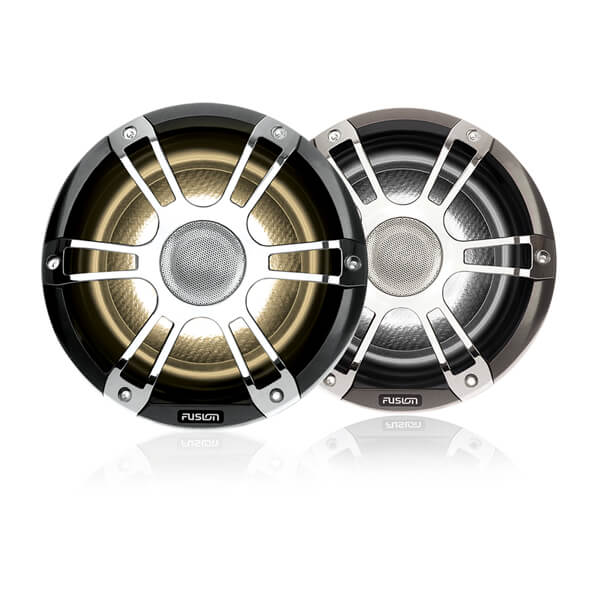

SPORTS CHROME SPEAKERS

The Signature Series 3 sports chrome speakers are available in 6.5”, 7.7” and 8.8” sizes and feature industry-first CRGBW LED lighting options.

Find the right setup with our online system builder.

Learn More

Experience the most efficient and powerful marine amplifiers from Fusion.

LEARN MORE

2021 Boating Industry Top Product Winner

¹Available only on sports-style Signature Series 3 speakers

General
Physical dimensions (Diameter x Depth)	8.8" classic speaker: 9.75" x 5.19" (247 x 131.5 mm) 8.8" sports speaker: 8.82" x 5.24" (224 x 133 mm) 7.7" classic speaker: 8.66" x 4.31" (220 x 109.5 mm) 7.7" sports speaker: 7.72" x 4.31" (196 x 111 mm) 6.5" classic speaker: 7.87" x 4.06" (200 x 103 mm) 6.5" sports speaker: 6.93" x 4.11" (176 x 104.5 mm)
Water and dust rating	IP65
Configuration	coaxial
Speaker size	SG-FL882SPW / SG-FL882SPC / SG-F882W: 8.8" SG-FL772SPW / SG-FL772SPC / SG-F772W: 7.7" SG-FL652SPW / SG-FL652SPC / SG-F652W: 6.5"
Peak power (Watts)	8.8" speaker: 330 W 7.7" speaker: 280 W 6.5" speaker: 230 W
RMS power (Watts)	8.8" speaker: 130 W 7.7" speaker: 100 W 6.5" speaker: 75 W
Sensitivity (1 W / 1 m)	8.8" speaker: 91 dB 7.7" speaker: 91 dB 6.5" speaker: 90 dB
Frequency response	8.8" speaker: 50 Hz - 20 kHz 7.7" speaker: 60 Hz - 22 kHz 6.5" speaker: 70 Hz - 22 kHz
Nominal impedance	4 ohms
Recommended amplifier power (RMS)	8.8" speaker: 25 140 W/Ch 7.7" speaker: 25-120 W/Ch 6.5" speaker: 30-90 W/Ch
LED lighting	yes - CRGBW (sports-style only)
LED Supply Voltage	10.8-16 VDC (sports-style only)
LED load current @ 14.4 VDC	300 mA (sports-style only)
Operating temperature range	32° to 122° F (0° to 50° C)
Voice coil diameter	8.8" speaker: 1.5" 7.7" speaker: 1.4" 6.5" speaker: 1.2"
Cone material	CURV cone with rubber surround
Tweeter type	Silk dome
Compass-safe distance	8.8" speaker: 162" (412 cm) 7.7" speaker: 141" (358 cm) 6.5" speaker: 122" (310 cm)
Warranty	3 years

Mounting Dimensions
Mounting diameter clearance	8.8" speaker: 7.44" (188 mm) 7.7" speaker: 6.14" (156 mm) 6.5" speaker: 5.35" (136 mm)
Mounting depth clearance	8.8" speaker: 4.13" (106 mm) 7.7" speaker: 3.39" (86 mm) 6.5" speaker: 3.11" (79 mm)

Optimum Enclosure Recommendations
Sealed enclosure volume (fully filled with absorption material)	8.8" speaker: 0.78 cubic ft (22 L) 7.7" speaker: 0.71 cubic ft (20 L) 6.5" speaker: 0.64 cubic ft (18 L)
Ported (vented) enclosure volume (lined with absorption material)	8.8" speaker: 1.23 cubic ft (35 L) 7.7" speaker: 1.06 cubic ft (30 L) 6.5" speaker: 0.88 cubic ft (25 L)
Port diameter	3" (76 mm)
Port length	8.8" speaker: 6.7" (170 mm) 7.7" speaker: 6.3" (160 mm) 6.5" speaker: 6.4" (162 mm)

One pair of speakers (based on what you select)
